byteENGINE AM6254

>Quad core ARM Cortex-A53 and Cortex-M4F MCU Co-CPU. The ARM Cortex-A53 runs with 1.4 GHz and provides powerful computing elements for Linux applications. Functional safety features can be enabled through the integrated Cortex-M4F along with its dedicated peripherals which can all be isolated from the rest of the SoC. The additional PRU module enables real-time I/O capability.

>Flexible connectivity with extensive peripheral and networking options. Two USB 2.0 interfaces, two SDIO interfaces, MIPI-CSI camera interface, dual Gigabit Ethernet MAC, serial interface.

>Powerful 3D Graphics Core with rich display capabilities. Dual LVDS-display output options at resolutions up to 2K@60fps paired with the advanced 3D-Graphics core IMG AXE1-16 for an outstanding user experience.

>High-speed LPDDR4 memory interface. For the highest performance and lowest standby power.

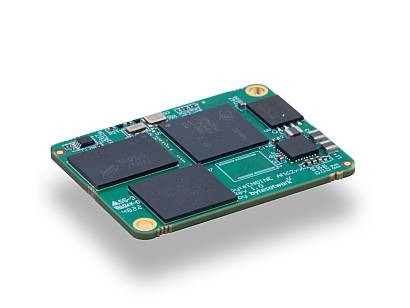

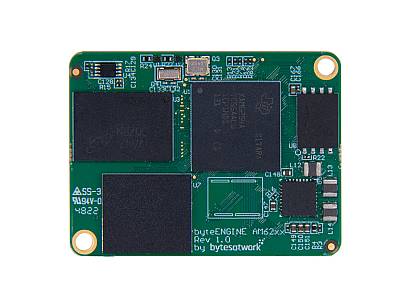

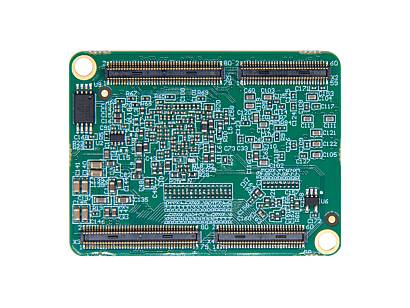

> Small format, high performance. Our module is smaller than a passport photo, which makes it fit easily into any design. Even the space below the module can be used efficiently.

>Secure boot and hardware security module. The boot procedure of our module can be secured so that only your software will run on the devices. The on-chip isolated dual-core microcontroller enables more dependable and functional safety-certifiable products.
