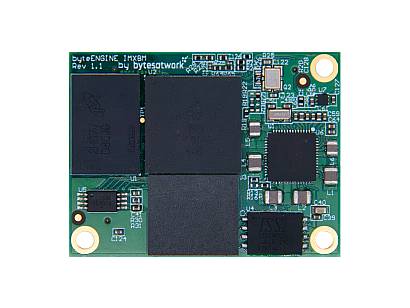

byteENGINE IMX8M Mini Dual
Description
> Dual core Arm Cortex-A53 and Cortex-M4 cores. The Arm Cortex-A53 runs at 1.8GHz, delivering outstanding system performance. The core is optimized for fanless operation, low thermal system cost and long battery life. The Cortex-A cores can be powered off while the Cortex-M4 subsystem performs low power, real time system monitoring.
> High-speed LPDDR4 memory interface for the highest performance and lowest standby power.
> Flexible connectivity with high-speed interfaces. Two USB 2.0 interfaces with PHY, Three SDIO interfaced, PCIe interface, MIPI-DSI display interface, MIPI-CSI camera interface, Gigabit Ethernet MAC .
> Rich display with video capabilities. Up to 1080p60 resolution on the MIPI-DSI interface with independent 2D and 3D GPU engines enable high quality user experience.
>Small format, high performance. Our module is smaller than a passport photo, yet it fits easily into any design. Even the space below the module can be used efficiently.
> Secure boot. Security matters are a big deal in a world of increasing networking and complexity. The boot procedure can be secured so that only your software will run on the devices.
Specification
| CPU Name | MIMX8MM4DVTLZAA |
|---|---|
| CPU Type | 2x Arm© Cortex A53 |
| Co-CPU | ARM® Cortex®-M4 (400 Mhz) |
| GPU | Vivante GC NanoUltra |
| RAM | 512 MB |
| Flash | eMMC 8 GB |
| Power Consumption | max. 4W |
| Product Dimensions | 30.0 x 40.0 x 5.0 mm |
| Temperature | 0° to +70° C |

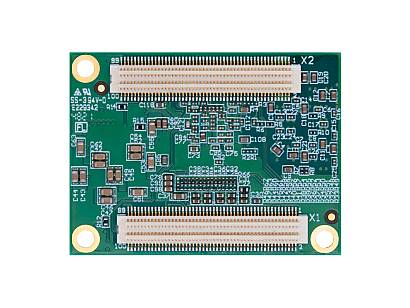

| Connectors | 2 x 100PIN |
| CPU Family | NXP i.MX8M Mini |
| Clock | 1800 |
| Shopkategorie | Module |
Software
Our constantly updated byteWIKI helps getting startet with our products. Furthermore the byteWIKI leads step by step through the first bring-up and delivers usefull and structured information about Software- and Hardware-Development. For more details please follow the link to the byteWIKI:
