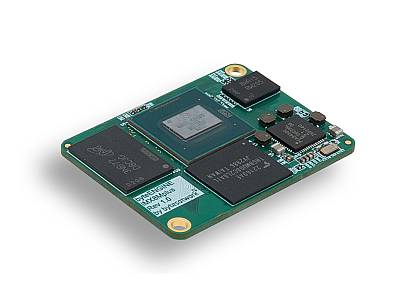

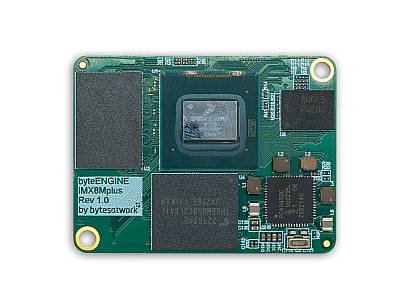

byteENGINE IMX8M Plus Quad

>Quad core ARM Cortex-A53 and Cortex-M7 MCU Co-CPU. The ARM Cortex-A53 runs with 1.8 GHz and provides powerful computing elements for Linux applications. Through the integrated Cortex-M7 at 800MHz the SoC includes a Realtime Co-Processor.

>AI and mashine learning. The SoC includes a Neural Processing Unit NPU and Dual Image-Signal-Processor for vision based mashine learning applications

>Flexible connectivity with extensive peripheral and networking options. Two USB 3.0 interfaces, PCIexpress, two SDIO interfaces, MIPI-CSI camera interface, dual Gigabit Ethernet MAC, and a lot of serial interfaces.

>Powerful 3D Graphics Core with rich display capabilities. HDMI, MIPI-DSI or LVDS-display output options at resolutions up to 2K@60fps paired with the advanced 3D-Graphics.

>High-speed LPDDR4 memory interface. For the highest performance and lowest standby power.

> Small format, high performance. Our module is smaller than a passport photo, which makes it fit easily into any design. Even the space below the module can be used efficiently.

>Secure boot and hardware security module. The boot procedure of our module can be secured so that only your software will run on the devices. The on-chip isolated dual-core microcontroller enables more dependable and functional safety-certifiable products.
