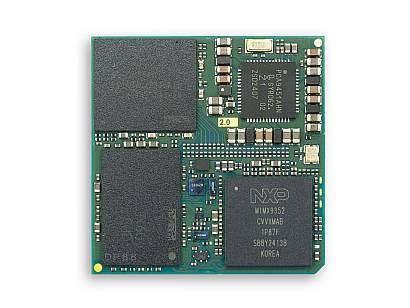

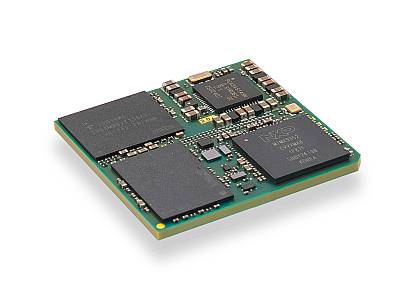

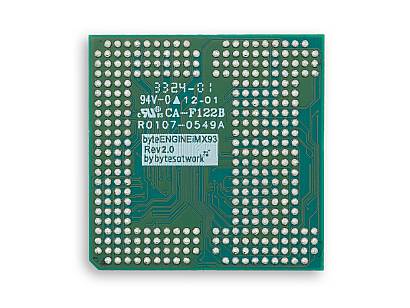

byteENGINE IMX93 OSM
Price starting from: 46.00 EUR
Do you require larger quantities of this product? Please contact our sales team.
Contact Now
Description
>Dual core ARM Cortex-A55 and Cortex-M33 MCU Co-CPU. The two ARM Cortex-A55 are running with 1.7 GHz and gives you the power for your Linux application. Thanks to the integrated Cortex-M33 at 250MHz realtime application are easy to implement.
>AI und mashine learning. The SoC includes a Neural Processing Unit NPU for machine learning and AI application.
>Flexible connectivity with many possibilities. Two USB 2.0 interfaces, two Flex-CAN, two SDIO interfaces, MIPI-CSI camera interface, dual Gigabit Ethernet MAC and many serialle interfaces.
>High-speed LPDDR4 memory interface. For the highest performance and lowest standby power.
> Small format, high performance. The SOM is according the OSM-S standard and gives you flexibility and performance on a small footprint.
>Secure boot and Hardware security module. The newest generation of NXP iMX93 CPU offers security modules: secure boot is state-of-the-art.
Specification
| CPU Name | MIMX9352CVVXMAB |
|---|---|
| CPU Type | 2x ARM© Cortex A55 |
| RAM | 1 GB |
| Flash | eMMC 16 GB |
| Product Dimensions | 30.0 x 30.0 x 3.0 mm |
| Temperature | 0° to +70° C |
| Connectors | OSM |
| CPU Family | NXP i.MX9x |
| Clock | 1700 |
| Shopkategorie | Module |
Our Software-Stack


Compatible Products
- byteDEVKIT-OSM STM32MP25 PCB | 5'' Display | microSD card with embedded Linux | Power supply | Console cable
byteDEVKIT-OSM-STM32MP25
byteDEVKIT-OSM STM32MP25 PCB | 5'' Display | microSD card with embedded Linux | Power supply | Console cablebyteDEVKIT-OSM-IMX93
byteDEVKIT-OSM base PCB | microSD with embedded Linux | Power supply | Console cablebyteSTARTKIT-OSM-STM32MP25
byteSTARTKIT-OSM STM32MP25 Base | microSD card with embedded Linux | Power supply | Console cablebyteSTARTKIT-OSM-IMX93
byteSTARTERKIT-OSM IMX93 Base | microSD with embedded Linux | Power supply | Console cable
